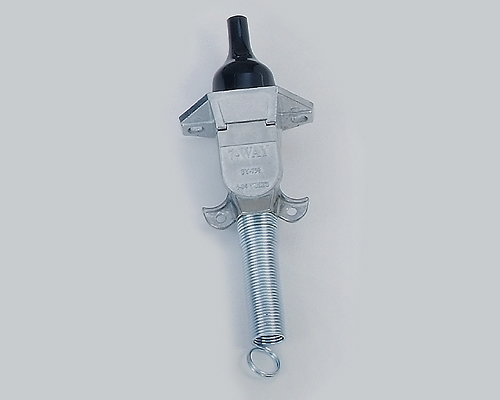

7-Way Connector
A 7-way connector, also known as a 7-pin trailer plug or trailer connector, is a standardized electrical connection used to connect the wiring between a towing vehicle (typically a truck or SUV) and a trailer. This type of connector is common for larger trailers, including utility trailers, camper trailers, horse trailers, and more, which may require multiple electrical connections for various functions.
The 7-way connector consists of seven pins or terminals, each serving a specific purpose. These pins are typically color-coded for easy identification, and they provide the necessary electrical connections for various trailer functions. Here's a breakdown of what each pin is used for:
Ground (White): The white wire is the ground connection. It provides a path for electrical current to return to the towing vehicle's battery, completing the circuit.
Tail Lights (Brown): The brown wire connects to the tail lights on the trailer, illuminating them when the towing vehicle's headlights or running lights are turned on.
Left Turn/Brake Lights (Yellow): The yellow wire carries the signal for the left turn signal and brake lights on the trailer. When the towing vehicle's left turn signal or brake lights are activated, this wire sends the corresponding signal to the trailer.
Right Turn/Brake Lights (Green): Similar to the yellow wire, the green wire carries the signal for the right turn signal and brake lights on the trailer.
Electric Brakes (Blue): The blue wire is used to connect the trailer's electric brake system to the towing vehicle. When the towing vehicle's brakes are applied, this wire sends the signal to activate the trailer's electric brakes, assisting in braking and reducing stopping distance.
Auxiliary Power (Black or Red): The black or red wire is often used for supplying power to accessories or charging the trailer's battery when connected to the towing vehicle. This wire can be used for various purposes, depending on the trailer's setup.
Backup Lights (Purple): The purple wire is for connecting the backup lights on the trailer. When the towing vehicle is shifted into reverse, this wire sends a signal to activate the trailer's backup lights.
It's important to note that not all trailers require all seven connections. For instance, smaller trailers may use a 4-way or 5-way connector, which provides fewer functions. However, the 7-way connector is versatile and can accommodate trailers with a wide range of electrical needs.
To use a 7-way connector, the corresponding 7-pin socket or receptacle must be installed on the towing vehicle, and the trailer must have the matching 7-pin plug. Properly connecting the pins ensures that all the necessary electrical functions between the towing vehicle and trailer work correctly, including lights, brakes, and signals. Regular inspection and maintenance of the connector and wiring are essential to ensure safe towing.
Connector Types: While the 7-way connector is a standard, there are variations in how it's configured. Some connectors have a round shape, while others are flat. The choice of connector type often depends on the trailer and towing vehicle's manufacturer and regional standards.
Adapter Cables: If your towing vehicle has a different type of connector (e.g., 4-way flat) and your trailer has a 7-way connector, you can use adapter cables to bridge the gap. Adapter cables allow you to connect the different types of connectors, ensuring compatibility.
Wire Gauge: The wire gauge (thickness) used for the wiring in the connector is essential for carrying the necessary electrical currents. Ensure that the wires in your 7-way connector are of sufficient gauge to handle the electrical loads without overheating or voltage drop.
Weatherproofing: Since trailers are often exposed to various weather conditions, it's crucial to use weatherproof 7-way connectors and seal the connections properly. Weatherproofing measures help prevent corrosion and ensure the connector's longevity.
Extension Cables: In some cases, you may need extension cables to bridge the gap between the towing vehicle and the trailer if the existing wiring is not long enough. Make sure any extension cables are properly rated and securely connected.
Testing: Before each towing trip, it's advisable to perform a quick test of the 7-way connector to ensure that all functions are working correctly. This includes testing the trailer lights, turn signals, brake lights, and electric brakes (if applicable).
Brake Controller: If your trailer is equipped with electric brakes, you'll need a brake controller installed in the towing vehicle. The brake controller is responsible for regulating the trailer's braking force and should be properly adjusted for safe towing.
Towing Vehicle Compatibility: Ensure that your towing vehicle is equipped with the appropriate wiring harness and socket for the 7-way connector. If not, you may need to have the vehicle's electrical system modified or upgraded to accommodate the 7-way plug.
Legal Compliance: Adherence to local and regional regulations regarding trailer connections and lighting is essential. Different areas may have specific requirements for the use of 7-way connectors and trailer lighting.
Emergency Disconnect: Consider adding an emergency disconnect switch to the 7-way connector system. This allows you to disconnect the trailer's electrical connection quickly in case of a malfunction or emergency.
Maintenance: Regularly inspect and maintain the 7-way connector and wiring to ensure they are in good condition. Look for signs of wear, damage, or corrosion, and address any issues promptly.
Proper Storage: When not in use, protect the 7-way connector from the elements by using a protective cover or cap. This helps extend its lifespan and prevents dirt and moisture from entering the connections.
Professional Installation: If you're not confident in your ability to install or troubleshoot the 7-way connector and associated wiring, consider having it professionally installed or inspected by a qualified technician.
A well-maintained and properly functioning 7-way connector is crucial for safe and reliable towing. Ensuring that all electrical connections are secure and functional is an essential part of trailer safety.
Color Coding Consistency: While the standard colors for the wires in a 7-way connector are widely recognized, it's essential to ensure that the colors used in your connector match the standard. This consistency makes troubleshooting and connecting the trailer to various towing vehicles more straightforward.
Connector Covers: Using a protective cover or cap for the 7-way connector when it's not in use helps shield it from dirt, debris, and moisture. Many covers are designed to be weather-resistant and keep the connections clean.
Wire Identification Labels: For added clarity, consider adding wire identification labels near the connector, indicating the function of each wire. This can be particularly helpful if the wires are not color-coded or if you have multiple trailers with different wiring configurations.
Anti-Theft Measures: To prevent theft of the 7-way connector or wiring, consider using locking devices or security measures that deter unauthorized removal.
Wire Routing: Ensure that the wiring from the 7-way connector to the various trailer components is properly routed and secured. Avoid loose or hanging wires that could be damaged during towing or while loading and unloading cargo.
Regular Cleaning: Periodically clean the connector's pins and sockets to remove dirt, rust, or corrosion. You can use a wire brush or contact cleaner to maintain good electrical connections.
Sealing Connections: Apply dielectric grease or silicone sealant to the connector's pins and sockets to create a waterproof seal and prevent moisture from entering the connections. This is especially important for trailers used in wet or humid environments.
Extension Cords and Splitter Boxes: If you have multiple trailers or need to connect additional accessories, consider using extension cords or splitter boxes designed for 7-way connectors. These devices simplify the process of connecting multiple trailers or accessories to a single towing vehicle.
Fuse Protection: To protect the electrical system of both the towing vehicle and the trailer, consider adding appropriate fuses or circuit breakers to the wiring. Fuses help prevent electrical overload and potential damage.
Emergency Repair Kit: Carry an emergency repair kit with spare connectors, wires, and tools when towing. This kit can be handy in case of unexpected wiring issues while on the road.
Custom Wiring: In some cases, trailers may have unique electrical requirements or configurations. Custom wiring and connectors may be necessary to accommodate specialized trailer functions.
Towing Vehicle Compatibility: Ensure that the towing vehicle is equipped with the necessary towing package or wiring harness to support a 7-way connector and its associated electrical functions.
Safety Chains and Weight Distribution: While not directly related to the 7-way connector, always use safety chains and consider weight distribution systems if towing a heavy trailer. These safety measures are essential for stable and safe towing.
Regular maintenance and attention to the condition of your trailer's 7-way connector and electrical system contribute to safe and trouble-free towing experiences. Additionally, understanding the functions and connections of the 7-way plug is crucial for efficient trailer operation and troubleshooting.
Adaptive Systems: Some towing vehicles and trailers may come equipped with adaptive systems that can automatically adjust trailer brake settings and provide additional information to the driver. These advanced systems can enhance towing safety and convenience.
Wiring Harness Compatibility: When purchasing a 7-way connector or related components, ensure compatibility with your towing vehicle's wiring harness. Different vehicles may have specific connectors or adapters that are required for a seamless connection.
Spare Fuses: Carry spare fuses for your towing vehicle's electrical system. If a fuse related to the trailer's electrical functions blows, it can disrupt the trailer's lights and brakes. Having spare fuses on hand can help you quickly address such issues.
Troubleshooting: Familiarize yourself with common troubleshooting techniques for 7-way connectors and trailer electrical systems. Knowing how to identify and address common issues, such as loose connections or blown fuses, can save time and prevent delays during your trip.
Emergency Repairs: In the event of a wiring issue while on the road, having a basic toolkit with wire strippers, crimpers, electrical tape, and spare connectors can be invaluable for making temporary emergency repairs.
Regular Inspection: Perform regular inspections of the 7-way connector, trailer wiring, and associated components before each trip. Look for signs of wear, damage, or loose connections, and address any issues promptly.
Backup Camera Integration: If your towing vehicle is equipped with a backup camera, consider integrating it with your trailer's electrical system. This can provide added visibility when reversing and parking.
Custom Wiring Harness: For trailers with specialized needs, such as those carrying livestock, boats, or RVs, consider investing in a custom wiring harness and connectors to ensure all electrical functions are properly supported.
Safety Chains and Breakaway Systems: In addition to the 7-way connector, make sure that your trailer is equipped with safety chains or cables and a functioning breakaway system to enhance towing safety.
Towing Capacities: Ensure that your towing vehicle is rated to handle the weight and towing capacities of the trailer you intend to tow. Exceeding towing capacity can lead to unsafe conditions and reduced vehicle performance.
Education and Training: If you're new to towing or using a 7-way connector, consider seeking out educational resources or training programs that cover safe towing practices and electrical system operation.
Load Distribution: Properly distribute the load on your trailer to prevent excessive tongue weight or unbalanced loads, which can impact towing stability and handling.
Regular Greasing: If your trailer has axles with electric brakes, ensure that the brake components are properly greased and maintained to prevent wear and ensure effective braking.
Legal Compliance: Always adhere to local and regional laws and regulations regarding trailer towing, lighting, and safety equipment. Compliance with these regulations is essential for safe and legal towing.
Remember that safe and efficient towing relies not only on the condition of the 7-way connector but also on the overall maintenance of your trailer, towing vehicle, and associated equipment. Regular inspections, proper setup, and adherence to safety guidelines contribute to a safer towing experience.
